1860 Army Revolver, .44 caliber, 8" barrel, walnut, blued, full fluted cylinder, extra cylinder, stainless nipples, holster, used, by Aldo Uberti

Home > Guns > Percussion guns > Percussion pistols & revolvers

1860 Army Revolver,
.44 caliber, 8" barrel,
walnut, blued, full fluted cylinder,
extra cylinder, stainless nipples, holster,
used, by Aldo Uberti

Part Number:	AAW-483
Availability:

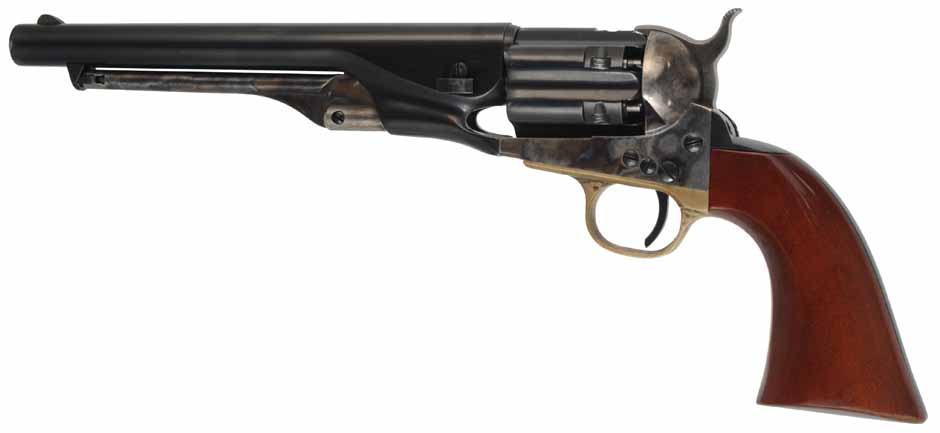

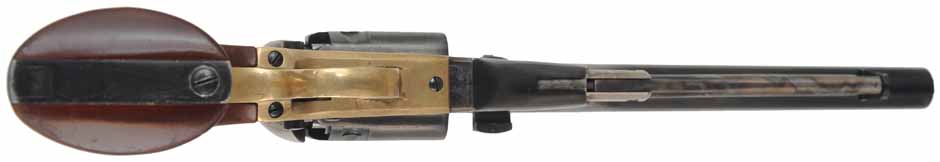

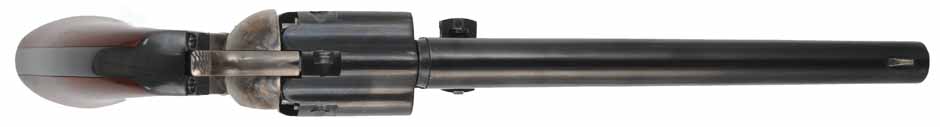

This 1860 Colt Army .44 caliber percussion revolver has the full fluted cylinder, 8" round barrel, and blued backstrap. The loading lever, steel frame, and hammer are color case hardened. The triggerguard is polished brass, which has aged to a mellow patina. The frame is notched, and this is the so-called four screw model which includes a surface mounted screw on each side of the frame. The butt is also notched to accept the military style carbine buttstock, sold elsewhere. The carbine buttstock clips and clamps to this U. S. Army issue style revolver, for Cavalry use. Manufactured by Aldo Uberti & Co. of Italy, this revolver has the factory box.

The blue finish has some holster wear at the muzzle and at the cylinder edges. The top of the barrel is unmarked. The bottom is marked Cal .44 Black Powder Only - A. Uberti Italy so they are neatly hidden by the loading lever. The varnished walnut grips have a few minor handling marks. The full fluted cylinder is fitted with stainless steel Slix shot nipples.

This revolver includes:

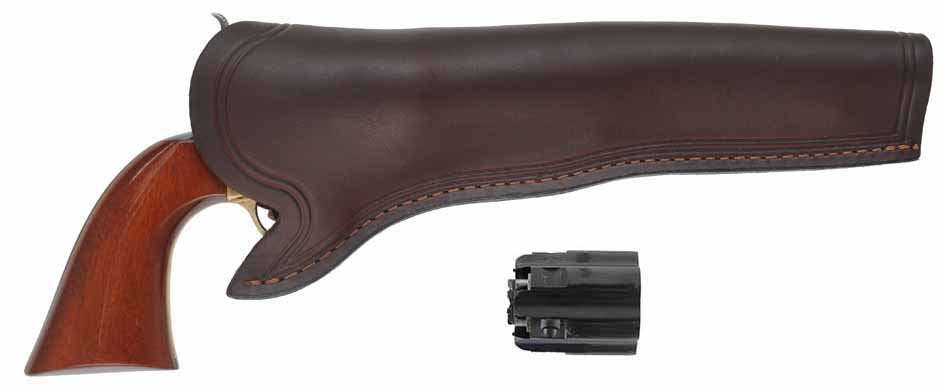

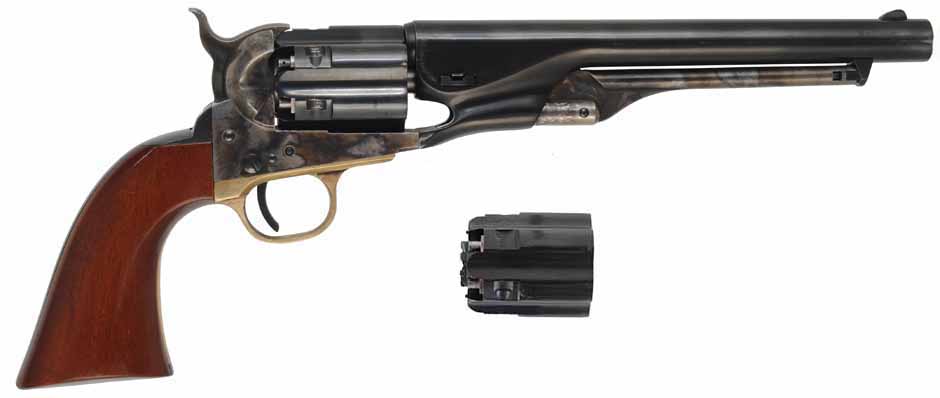

One additional fluted cylinder, fitted with stainless steel Slix shot nipples
A right hand cross draw slim Jim holster

The factory recommends a .451" diameter round ball. We recommend our #BALL-454 for best compression. You may need to slightly chamfer the chamber mouths. If your revolver shaves lead, slightly polish each chamber mouth with fine emery and a marble, until the ball seats fully, compressing the lead instead of shearing it.

Despite your best efforts, this revolver will need to be cleaned after 12 or 18 shots. Remove the wedge, barrel, and cylinder. Wipe the face of the cylinder, and wipe the cylinder pin. If you continue to load and fire a badly fouled revolver, the effort needed to cock and fire the gun will become greater, causing the small internal hand, spring, and cylinder latch to become worn and slightly damaged. Continued abuse will cause the cylinder and latch to become out-of-time. Simple cleaning and maintenance will prevent problems. We can supply a correct Colt style flask, balls, mold, and everything you need for your percussion revolver.

This revolver is offered in excellent used condition. The bore is bright, clean, and ready to shoot. It will be a joy to shoot at the range! Order it for a ten day visual inspection. You will be delighted. Else if it does not fit you, return it in unfired condition for same-day refund. Postage is your only risk, when you order any one-of-a-kind gun from Track, whether new, used, or antique.

Ready to order? Click VIEW CART in the upper right of the screen, review items and quantities, then click CHECK OUT. Enter your name, address, and billing information for prompt shipment. Or, PRINT your order after entering your address, attach your check or money order, and send it by mail. Shipping cost is displayed after you enter your address.

Our web site displays actual in stock status, up-to-the-minute price, and shipping cost to every address in the USA and MOST OTHER COUNTRIES. International shipping cost for extra long or heavy parcels are determined after we weigh the parcel.

Ten day inspection begins at delivery. Send your approval. Else return it for same day refund, if not delighted. Postage is your only risk.

Bullets .450" diameter, 200 grain, conical revolver bullet for .44 Army Revolvers, cast from LEE 90382, pure lead, per 50

Part Number:	BALL-450-200
Availability:
Price:	$17.99
Order Quantity:

.451" round balls, pure lead, Hornady, per 100

Part Number:	BALL-451
Availability:
Price:	$17.59
Order Quantity:

.454" round balls, pure lead, Hornady, per 100

Part Number:	BALL-454
Availability:
Price:	$17.99
Order Quantity:

Choke Tube Lube, anti-seize grease, 3/4 ounce tube, by Birchwood Casey

Part Number:	BC-CTL
Availability:
Price:	$9.99
Order Quantity:

Belt, black leather, 1-3/4" wide, waist size 30 to 46

Part Number:	BELT-BU-1B
Availability:
Price:	$26.99
Order Quantity:

Track's best Black Powder BORE CLEAN Solvent, with flip-top spout

Part Number:	BORE-CLEAN
Availability:
Price:	$4.59
Order Quantity:

Bore brush, bronze, for .45 caliber, 10-32 thread

Part Number:	BRUSH-45-10
Availability:
Price:	$4.29
Order Quantity:

Brass Capper, for No. 11 caps, straight line, made in the USA, by Tedd Cash

Part Number:	CAPPER-P
Availability:
Price:	$12.59
Order Quantity:

Powder Flask, Colt pattern for Army & Navy revolvers, accepts all spouts with 10-1mm threads

Part Number:	FLASK-COLT
Availability:
Price:	$53.59
Order Quantity:

Military Holster, right hand, black leather, plain flap

Part Number:	HOLSTER-MB-R
Availability:
Price:	$32.99
Order Quantity:

Button jagged cleaning tip, .44 caliber, brass, 8-32 thread

Part Number:	JB-44-8
Availability:
Price:	$3.99
Order Quantity:

Trapper's MINK OIL TALLOW, patch grease, for match shooting & cold weather hunting, one 8 oz. tin

Part Number:	MINK-OIL
Availability:
Price:	$8.59

Nipple Wrench for Revolvers, for .36 & .44 Colt Army & Navy Models, and other revolvers with a large nipple recess.

Part Number:	NW-140
Availability:
Price:	$9.99
Order Quantity:

Cleaning Patches, 2" diameter, bag of 100, pure cotton flannel, for .30 to .40 caliber

Part Number:	OX-CLEAN-45C
Availability:
Price:	$4.49
Order Quantity:

Ox-Yoke Revolver Wonder Seal, 100 seals for .44-.45 cal.

Part Number:	OX-REV-44-SEAL
Availability:
Price:	$9.99
Order Quantity:

.44/.45 caliber revolver Wonder Wad, bag of 100 lubricated felt wads

Part Number:	OX-WAD-44-W
Availability:
Price:	$7.99
Order Quantity:

Nipple, 12-28 aka 5.5-.9mm metric thread, for most brands of .31/.36 Colt and Remington pocket revolvers and many Uberti 1851, 1860, 1861 Colt & 1858 Remington revolvers, Colt brand second generation 1851 & 1860 revolvers, #11 CCI cap, hardened steel

Cone length: 0.285"
Thread journal length: 0.200"
Overall length: 0.485"
Diameter of base: 0.295"

Part Number:	PTC-PI
Availability:
Price:	$4.99
Order Quantity:

Nipple, 12-28 aka 5.5-.9mm metric thread, for most brands of.31/.36 Colt and Remington pocket revolvers and many Uberti 1851, 1860, 1861 Colt & 1858 Remington revolvers, Colt brand second generation 1851 & 1860 revolvers, #11 CCI cap, stainless steel

Cone length: 0.285"
Thread journal length: 0.200"
Overall length: 0.485"
Diameter of base: 0.295"

Part Number:	PTC-PS
Availability:
Price:	$4.99
Order Quantity:

Drift Punch, knurled brass, for wedge keys and sights.

Part Number:	TOOL-KEY-B
Availability:
Price:	$5.29
Order Quantity:
